EMS ADT Message Handling

Document History

Version	Date	Who	Comments
v0.1 - Draft	5th Dec 2017	Lee Dyson	First draft
v0.2 - Draft	6th Dec 2017	Lee Dyson	Minor corrections
v0.3 - Draft	10th May 2021	Lee Dyson	Standardised format
v1.0 - Release	28th June 2021	Robert McNaught	Consistency updates
v1.1 - Release	30th June 2021	Robert McNaught	Consolidated PID and PD1 into standard segment definitions doc
v1.2 - Release	16th Jul 2021	Robert McNaught	Disclaimer
v1.3 - Release	29th Sept 2021	Robert McNaught	Formatting and fixes

• EMS ADT Message Handling
  • Document History
  • Message Flow
  • ADT messages
    • Messages Supported
  • Message Structure
    • A28, A31
    • Sample ADT message
    • A40
    • ACK Message
  • Segment Definitions
    • MSH
    • EVN
    • PID
    • PD1
    • PV1
    • MRG

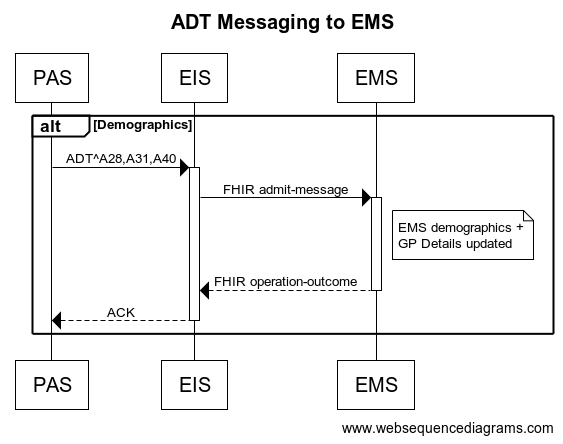

Message Flow

ADT messages

EMS supports inbound demographics via ADT messages. Only basic demographic messages and merges are required.

Messages Supported

Message Type	Default Action
ADT^A28, A31	update patient record
ADT^A40	merge patient records

EMS will accept other ADT message types, and can be configured to either:

• discard them (default) and return a positive ack AA
• treat them as demographic updates and update EMS from the PID and PD1 segments as above.

Message Structure

[] - Optional

{} - Repeating

A28, A31

MSH
[EVN]
PID
[PD1]
[PV1]

Sample ADT message

MSH|^~\&|PAS|RJ7|EMS|RJ7|20180409204839||ADT^A31|15893A1096|P|2.4|
EVN|A31|20180409204839
PID|1||28099^^^RJ7^MRN~9876543210^^^NHS^NH||Dyson^Lee^^^Mr^^CURRENT||19690204|1||""|12 Somewhere Avenue^Ipswich^""^^IP6 3SP^GBR^HOME^^IPSWICH^^^^^^^^""~^^sales@medilogik.co.uk^""^""^""^EMAIL^^""^^^^^^^^""|IPSWICH|01309666666^HOME^^~07777777777^Mobile||""|""|OTHER|7602||||A||""||""|""|""||""
PD1|||^^S123456|G1234567^SMITH^JOHN|

A40

MSH
[EVN]
PID
MRG

ACK Message

EMS will return an ACK message in the following format

MSH
MSA

Note:

• Standard HTTP Response Semantics are employed.

Segment Definitions

MSH

Please Refer to EMS Standard Segment Definitions

EVN

Please Refer to EMS Standard Segment Definitions

PID

Please Refer to EMS Standard Segment Definitions

PD1

Please Refer to EMS Standard Segment Definitions

PV1

By default, PV1 segment is not processed on inbound ADT demographic update messages.

MRG

This segment is only present in ADT^A40 messages

Field	Name	Required	Example	Notes
1	Prior Patient Identifier	Y	MRG
1.4	Assigning Authority	Y		as per PID:3.4
1.5	Identifier Type Code	Y	MRN	as per PID:3.5

Note:

• Merging is only supported for MRN identifier types.
